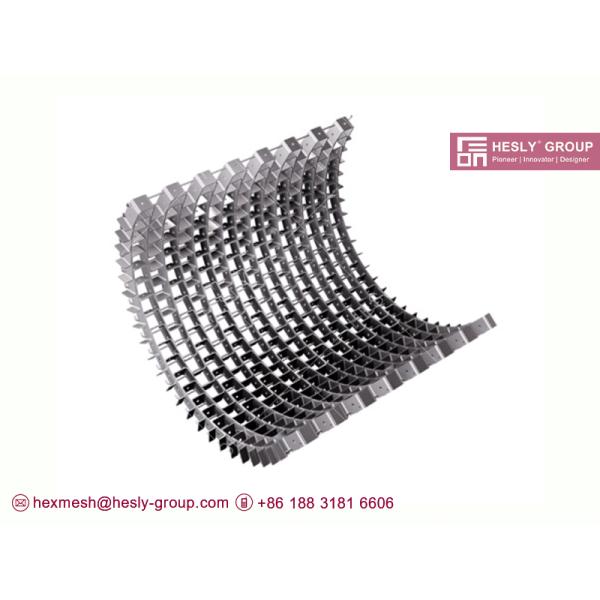

Standard Flex Metal,0Cr13 Flexmetal,2x25x25mm,Flexible Metal for Refractory Linings

Name: Standard Flex Metal0Cr13 Flexmetal2x25x25mmFlexible Metal for Refractory Linings
Brand: HESLY
Price: 15.00 USD

$Buy cheap Standard Flex Metal,0Cr13 Flexmetal,2x25x25mm,Flexible Metal for Refractory Linings product$ $Buy cheap Standard Flex Metal,0Cr13 Flexmetal,2x25x25mm,Flexible Metal for Refractory Linings product$ $Buy cheap Standard Flex Metal,0Cr13 Flexmetal,2x25x25mm,Flexible Metal for Refractory Linings product$ $Buy cheap Standard Flex Metal,0Cr13 Flexmetal,2x25x25mm,Flexible Metal for Refractory Linings product$ $Buy cheap Standard Flex Metal,0Cr13 Flexmetal,2x25x25mm,Flexible Metal for Refractory Linings product$

Place of Origin : Hesly Metal Mesh, CHINA

Brand Name : HESLY

Certification : ISO9001：2008

Model Number : HEX1519F

MOQ : 50 ㎡

Price : US$15.00-US$80.00

Packaging Details : Pallet

Delivery Time : according to the order (in stock)

Payment Terms : TT/LC

Supply Ability : 800㎡/day

Raw Material : Mild Steel / Stainless Steel

Thickness : 1.5mm

Height : 19mm

Sheet Size : 500X1000mm

Contact Now

Standard Flex Metal,0Cr13 Flexmetal,2x25x25mm,Flexible Metal for Refractory Linings

$Standard Flex Metal,0Cr13 Flexmetal,2x25x25mm,Flexible Metal for Refractory Linings$ Flex metal refractory lining is the direct counterpart of hex metal, it performs all the same functions of reinforcement of thin wall refractory linings, while its design allows free form rolling to very small diameters. Hex metal becomes impractical to use when the section of plant being protected is of small diameter, the free rolling capabilities of flex metal allows plant as small as 150mm to lined. Typical applications include air distributors, cyclone diplegs, fan cases and all plants where the practicality of free rolling material is beneficial to maintenance activities

Flex Metal Applications

Since hexmesh’s flexibility allows it to be rolled, it easily conforms to circular shapes. It is ideal for lining ducts, furnaces, reactor vessels, cyclones, flue gas lines and other high temperature equipment of virtually any shape.

FOR REFRACTORIES
The flexibility, high strength and erosion resistant characteristics of Hexmesh make it an excellent choice for refractory linings in furnaces, reactors, cyclones, ducts and flues.
FOR FLOORS
Hexmesh provides long term protection for armor applications inside industrial floors. Specifically, loading docks, ramps, high traffic aisles for forklifts and trucks. Hot floors for foundries, forge shops and steel mills. Refuse and recycle disposal plant floors and almost anywhere floors are subject to severe impact and rolling loads. All will benefit with Hexmesh

Hot gaseous substances cannot erode the refractory because they are reflected away from the surface by the metal honeycomb- shaped grid.

$Standard Flex Metal,0Cr13 Flexmetal,2x25x25mm,Flexible Metal for Refractory Linings$	$Standard Flex Metal,0Cr13 Flexmetal,2x25x25mm,Flexible Metal for Refractory Linings$
Standard Bonding Hole Pattern	Lance Pattern

Common Specification Sheet

HESLY Flexible Metal Mesh
Model	Strips				Rod	Width	Length	Weight
Model	Depth		Thickness		Rod	Width	Length	Weight
HFM2520	25mm	1”	2.0mm	14 GA	3.0mm	1.0m	1.5m
HFM2515	25mm	1”	1.5mm	17 GA	3.0mm	1.0m	1.5m
HFM1920	19mm	3/4”	2.0mm	14 GA	3.0mm	1.0m	1.5m
HFM1915	19mm	3/4”	1.5mm	17 GA	3.0mm	1.0m	1.5m
HFM1620	16mm	5/8”	2.0mm	14 GA	3.0mm	1.0m	1.5m
HFM1615	16mm	5/8”	1.5mm	17 GA	3.0mm	1.0m	1.5m
HFM1420	14mm	9/16”	2.0mm	14 GA	3.0mm	1.0m	1.5m
HFM1415	14mm	9/16”	1.5mm	17 GA	3.0mm	1.0m	1.5m

Typical Service Temperature

Anchorage Material		Chemical Composition								Typical Service Temperature
AISI	DIN	C%	Si%	Mn%	P%	S%	Cr%	Ni%	others	Typical Service Temperature
304	1.4301	≤0.08	≤1.00	≤2.00	≤0.45	≤0.30	18.0—20.0	8.0—10.0	N	800℃
316	1.4401/1.4436	≤0.08	≤0.75	≤2.00	≤0.45	≤0.30	16.0—18.0	10.0—14.0	N:Mo	800℃
321	1.4541	≤0.08	≤0.75	≤2.00	≤0.45	≤0.30	17.0—19.0	9.0—12.0	Ti	800℃
310S	1.4845	≤0.08	≤1.50	≤2.00	≤0.45	≤0.30	24.0—26.0	19.0—22.0	—	1150℃
Inconel 601	2.4851	≤0.10	≤0.50	≤1.00	—	≤0.15	21.0—25.0	58.0—63.0	Al:Cu	1200℃
Inconel 800	1.4876	≤0.10	≤1.00	≤1.50	≤0.45	≤0.15	19.0—23.0	30.0—35.0	Al:Ti	1200℃
410S	1.4001	≤0.08	≤1.00	≤1.00	≤0.40	≤0.30	11.5—13.5	≤0.60	—	750℃
CARBON STEEL		VARIOUS								550℃

Flexible Metal Mesh Gallery


$Standard Flex Metal,0Cr13 Flexmetal,2x25x25mm,Flexible Metal for Refractory Linings$	$Standard Flex Metal,0Cr13 Flexmetal,2x25x25mm,Flexible Metal for Refractory Linings$
Flexible Metal Mesh Factory	Standard Flexible Mesh
$Standard Flex Metal,0Cr13 Flexmetal,2x25x25mm,Flexible Metal for Refractory Linings$	$Standard Flex Metal,0Cr13 Flexmetal,2x25x25mm,Flexible Metal for Refractory Linings$
Flexible Metal Mesh Factory	Flexible Metal Mesh China
$Standard Flex Metal,0Cr13 Flexmetal,2x25x25mm,Flexible Metal for Refractory Linings$	$Standard Flex Metal,0Cr13 Flexmetal,2x25x25mm,Flexible Metal for Refractory Linings$
Flexible Metal Refractory Linings	Flex Metal Mesh China Factory
