304H Stainless Steel Hexmesh with bonding holes | 1" depth X 16gauge | China Hexmesh Exporter

Name: 304H Stainless Steel Hexmesh with bonding holes 1quot depth X 16gauge China Hexmesh Exporter
Brand: HESLY
Price: 1 USD

Buy cheap 304H Stainless Steel Hexmesh with bonding holes | 1" depth X 16gauge | China Hexmesh Exporter product

Brand Name : HESLY

Model Number : H-GJ251550304H

Certification : ISO9001：2008

Place of Origin : HESLY METAL MESH, Anping, China

MOQ : 1 ㎡

Price : Negotiated according to the order

Payment Terms : T/T, L/C at sight, D/P, Western Union

Supply Ability : 800㎡/day

Delivery Time : according to the order (in stock)

Packaging Details : Pallet

Material : 410S,304,304H,310S, Carbon Steel

Technical : Perforating & Riveting

Gauge : 12#, 14#, 16# etc.

Thickness : 3/4", 1", 2" etc

Standard Panel Size : 36"X120" (914X3050mm)

Package : Steel Pallet

Contact Now

304H Stainless Steel Hexmesh with bonding holes | 1" depth X 16gauge | China Hexmesh Exporter

Hexmesh, also named Hexmetal and hexsteel is a hexagon shaped grid used in the installation of thick linings. Hexmesh supports the lining and prevents slumps. It retards erosion, corrosion, cracking, blistering, pitting or collapse thereby lengthening the life of the lining. Hexmetal is recommended for use when placement is spaced from the steel shell to allow room for thick insulation between the steel shell and the armored surface. The slots permit passage of the castable which forms a key between adjacent cells. Available in standard and lance pattern.

304H Stainless Steel Hexmesh with bonding holes | 1" depth X 16gauge | China Hexmesh Exporter FOR REFRACTORIES
The flexibility, high strength and erosion resistant characteristics of Hexmesh make it an excellent choice for refractory linings in furnaces, reactors, cyclones, ducts and flues.
FOR FLOORS
Hexmesh provides long term protection for armor applications inside industrial floors. Specifically, loading docks, ramps, high traffic aisles for forklifts and trucks. Hot floors for foundries, forge shops and steel mills. Refuse and recycle disposal plant floors and almost anywhere floors are subject to severe impact and rolling loads. All will benefit with Hexmesh

Hot gaseous substances cannot erode the refractory because they are reflected away from the surface by the metal honeycomb- shaped grid.

The flexibility of HESLY’s Hexmesh allows it to be rolled, and easily conforms to circular shapes. It is recommended for use when placement is spaced from the steel shell to allow room for thick insulation between the metal shell and the armoured surface.


Standard Bonding Hole Pattern	Lance Pattern

HESLY HexMesh Typical Service Temperature:

Anchorage Material		Chemical Composition								Typical Service Temperature
AISI	DIN	C%	Si%	Mn%	P%	S%	Cr%	Ni%	others	Typical Service Temperature
304	1.4301	≤0.08	≤1.00	≤2.00	≤0.45	≤0.30	18.0—20.0	8.0—10.0	N	800℃
316	1.4401/1.4436	≤0.08	≤0.75	≤2.00	≤0.45	≤0.30	16.0—18.0	10.0—14.0	N:Mo	800℃
321	1.4541	≤0.08	≤0.75	≤2.00	≤0.45	≤0.30	17.0—19.0	9.0—12.0	Ti	800℃
310S	1.4845	≤0.08	≤1.50	≤2.00	≤0.45	≤0.30	24.0—26.0	19.0—22.0	—	1150℃
Inconel 601	2.4851	≤0.10	≤0.50	≤1.00	—	≤0.15	21.0—25.0	58.0—63.0	Al:Cu	1200℃
Inconel 800	1.4876	≤0.10	≤1.00	≤1.50	≤0.45	≤0.15	19.0—23.0	30.0—35.0	Al:Ti	1200℃
410S	1.4001	≤0.08	≤1.00	≤1.00	≤0.40	≤0.30	11.5—13.5	≤0.60	—	750℃
CARBON STEEL		VARIOUS								550℃

HESLY-hexsteel ordinary specs:

HESLY-hexsteel ordinary specifications (E-ON refractory)
ITEM	SPECS		B	A	AF
1	1.2 X 10 X 50mm		1.2mm	10mm	40mm
2	1.2 X 15 X 50mm		1.2mm	15mm	50mm
3	1.2 X 20 X 50mm		1.2mm	20mm	50mm
4	1.5 X 10 X 50mm		1.5mm	10mm	50mm
5	1.5 X 15 X 50mm		1.5mm	15mm	50mm
6	1.5 X 20 X 50mm		1.5mm	20mm	50mm
7	1.8 X 15 X 50mm		1.8mm	15mm	50mm
8	1.8 X 20 X 50mm		1.8mm	20mm	50mm
9	1.8 X 25 X 50mm		1.8mm	25mm	50mm
10	2.0 X 15 X 50mm		2.0mm	15mm	50mm
11	2.0 X 20 X 50mm		2.0mm	20mm	50mm
12	2.0 X 25 X 50mm		2.0mm	25mm	50mm
13	2.0 X 30 X 50mm		2.0mm	30mm	50mm
14	2.0 X 30 X 80mm		2.0mm	30mm	80mm
Remark	A/F	Min: 40mm Max: 100mm
	MATERIAL	A3 ,0Cr13,1Cr13,SS304,SS316,1Cr18Ni9Ti,SS310S

Hexsteel Photo Showcase

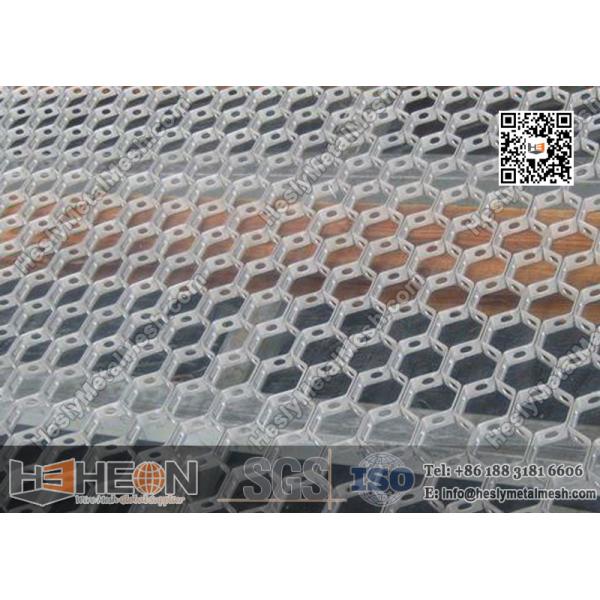

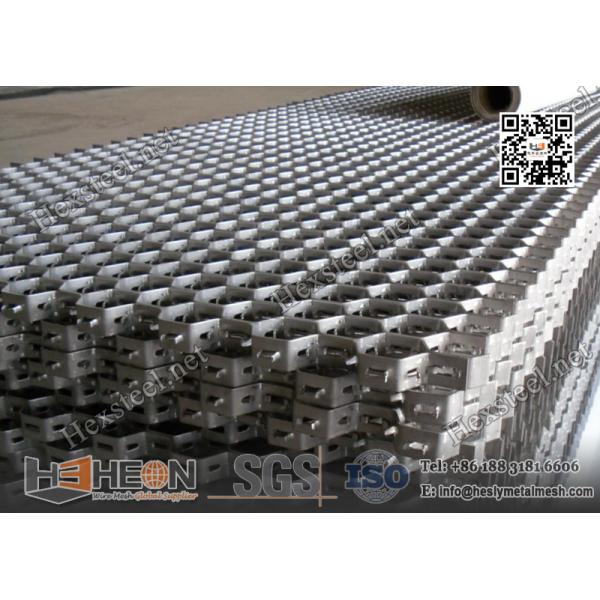

Hexmesh with Bonding Holes	Hexmesh with Bonding Holes

SUS304H Hexmesh with Lances	SUS304H Hex mesh with lances

Hexmesh with reinforced strip	Hexmesh with reinforced strip

Hexmetal with lances	Hexmetal with lances
